Vector 6'
Low-profile aluminum hulls and jon boats
- Pole Length
- 6'
- Drive Type
- Manual tensioning strap
- Max Boat Length
- 22 ft
- Max Boat Weight
- 3,000 lbs
- Deployment Depth
- 8 ft
- Retracted Height
- 54"
- Anchor Weight
- 18 lbs
- Electrical Required
- None
Vector Manual Anchor
No wiring, no battery, no motor. A manual tensioning strap deploys and locks in one motion — the same reliable hold as the Axis with zero electrical dependence. Choose your pole length and finish below.
Loading image

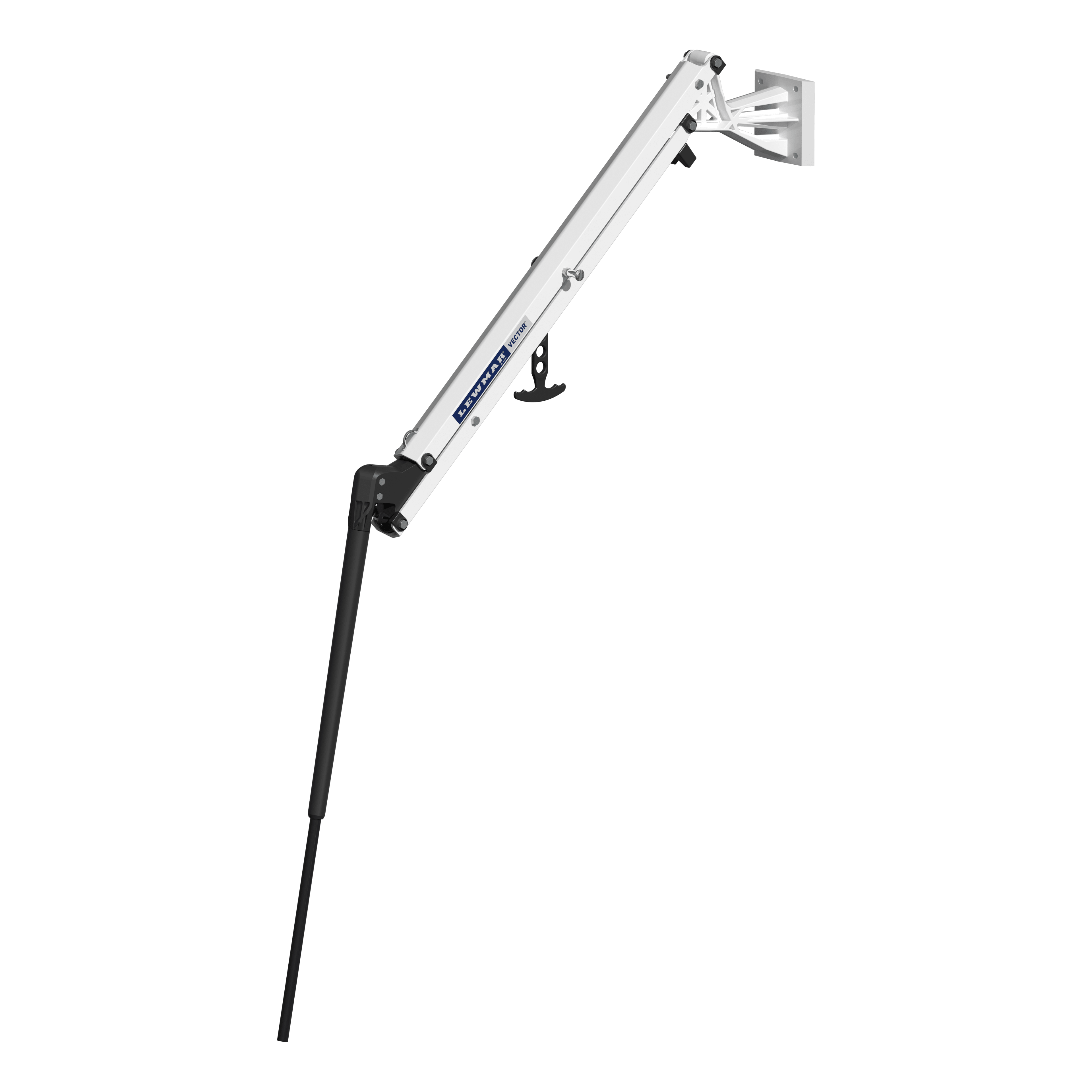

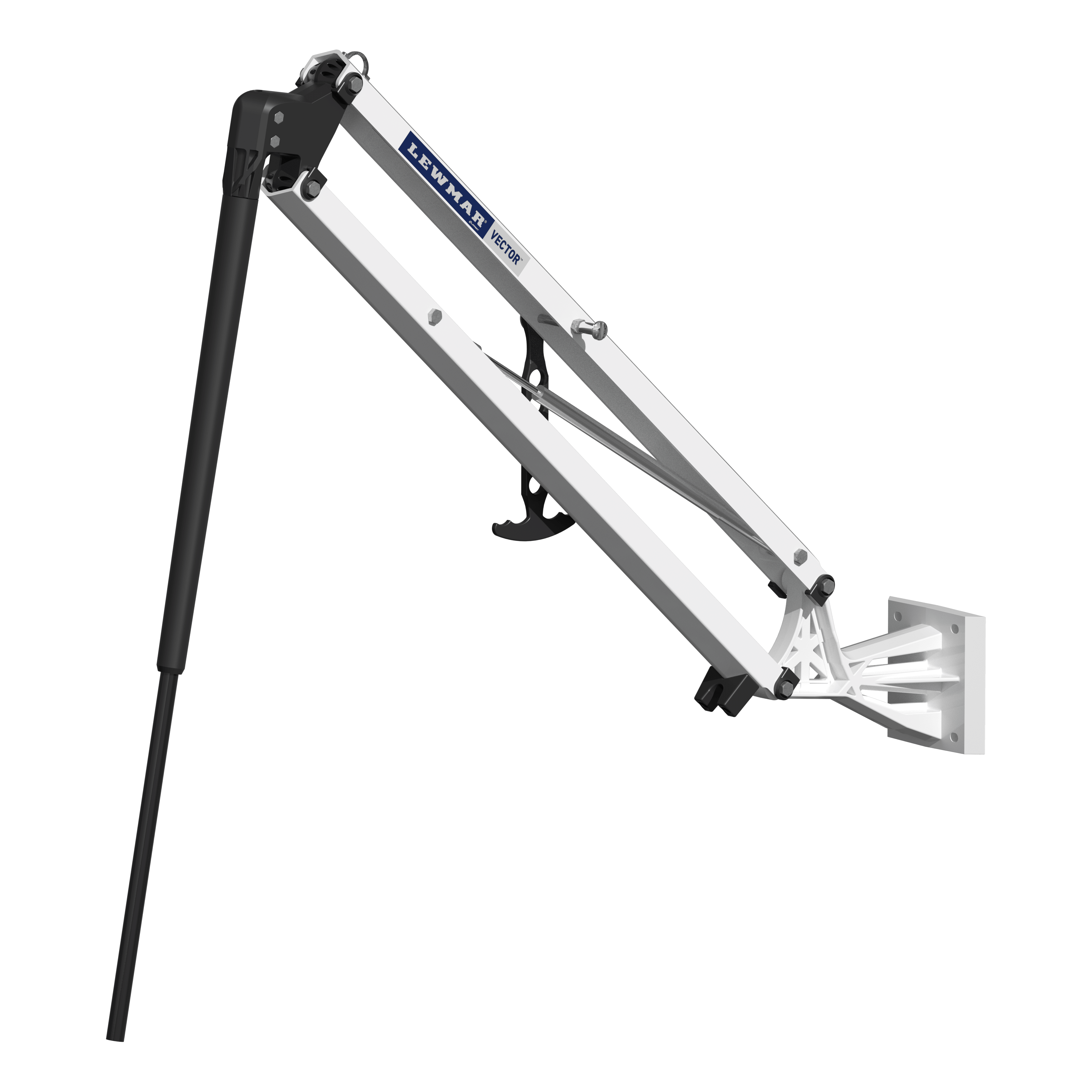

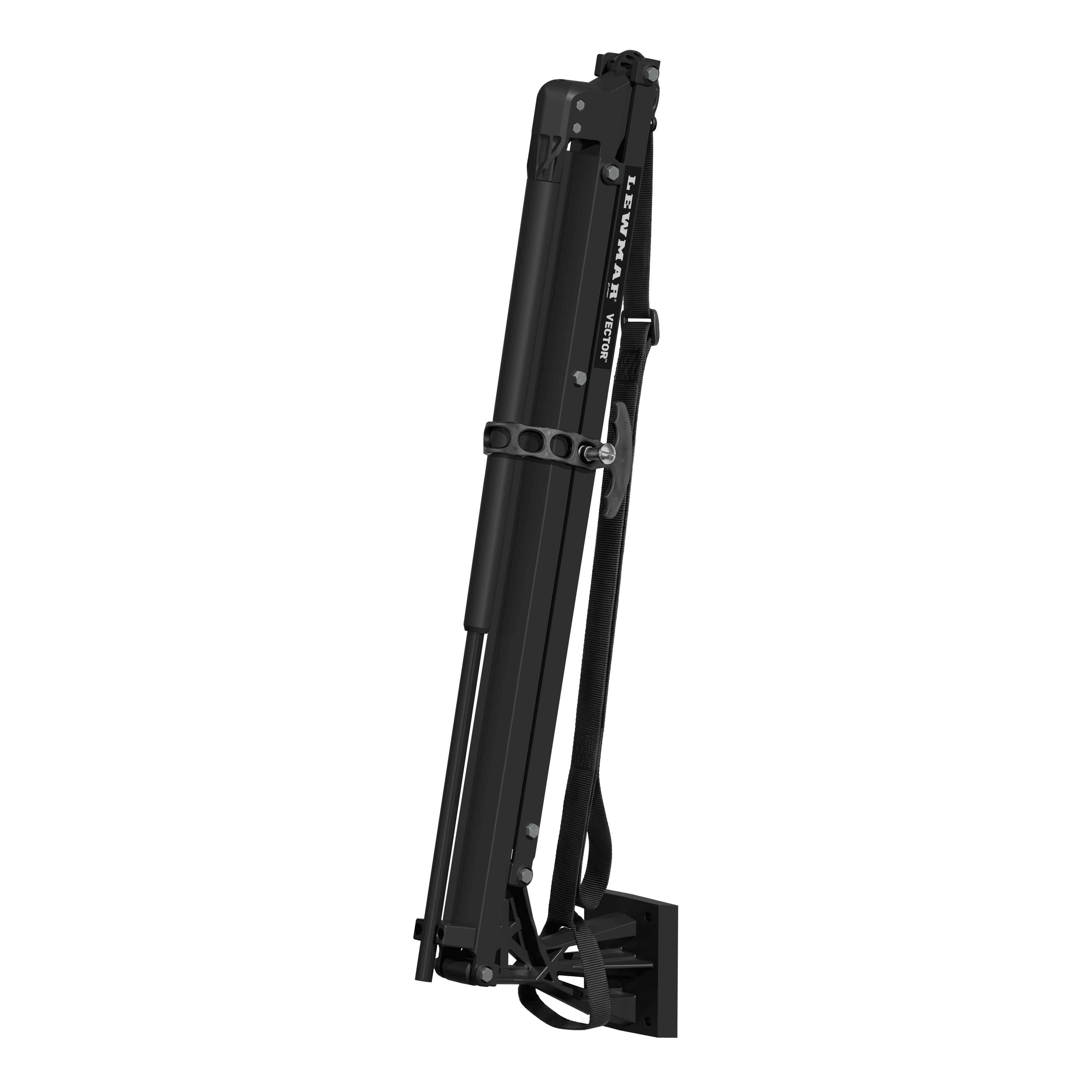

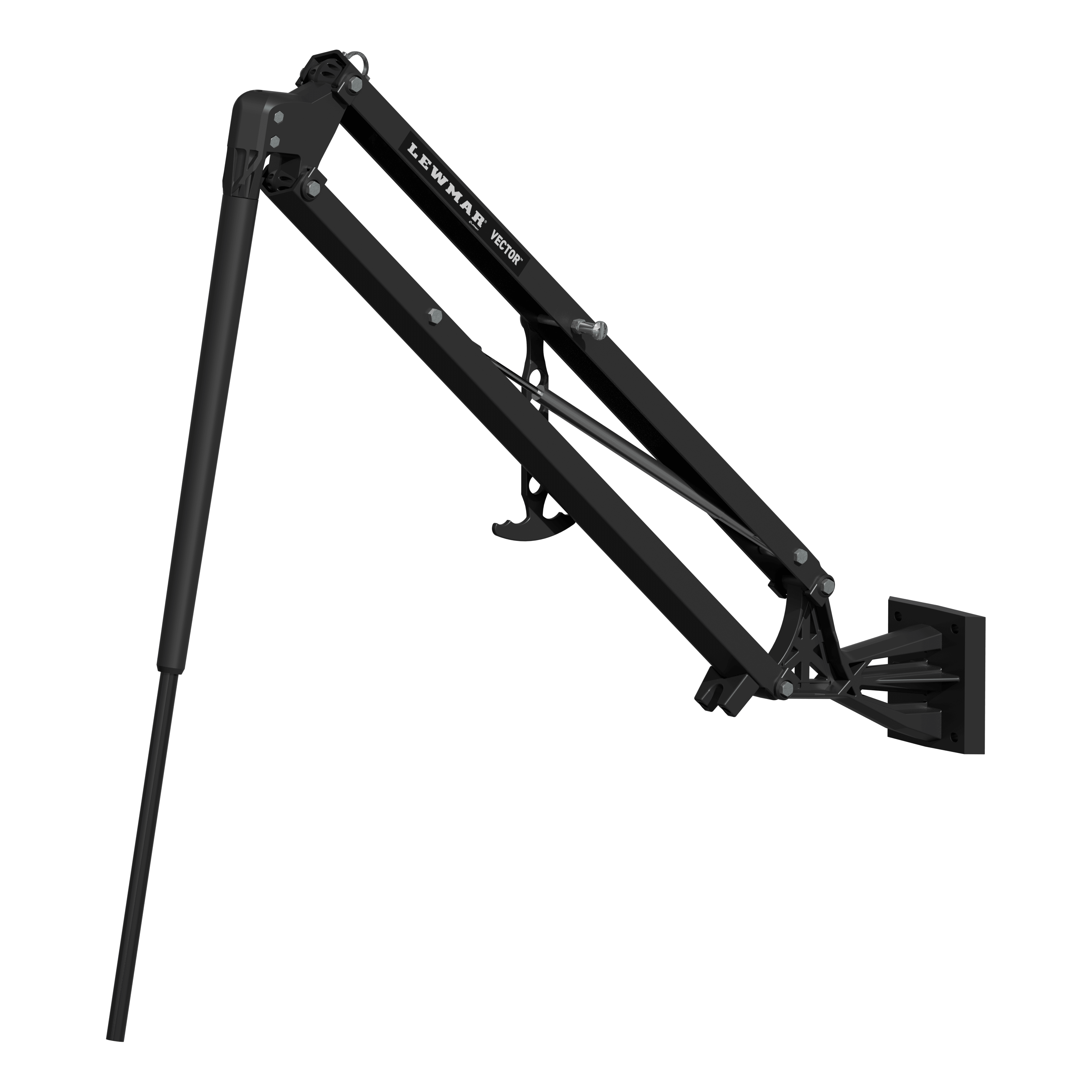

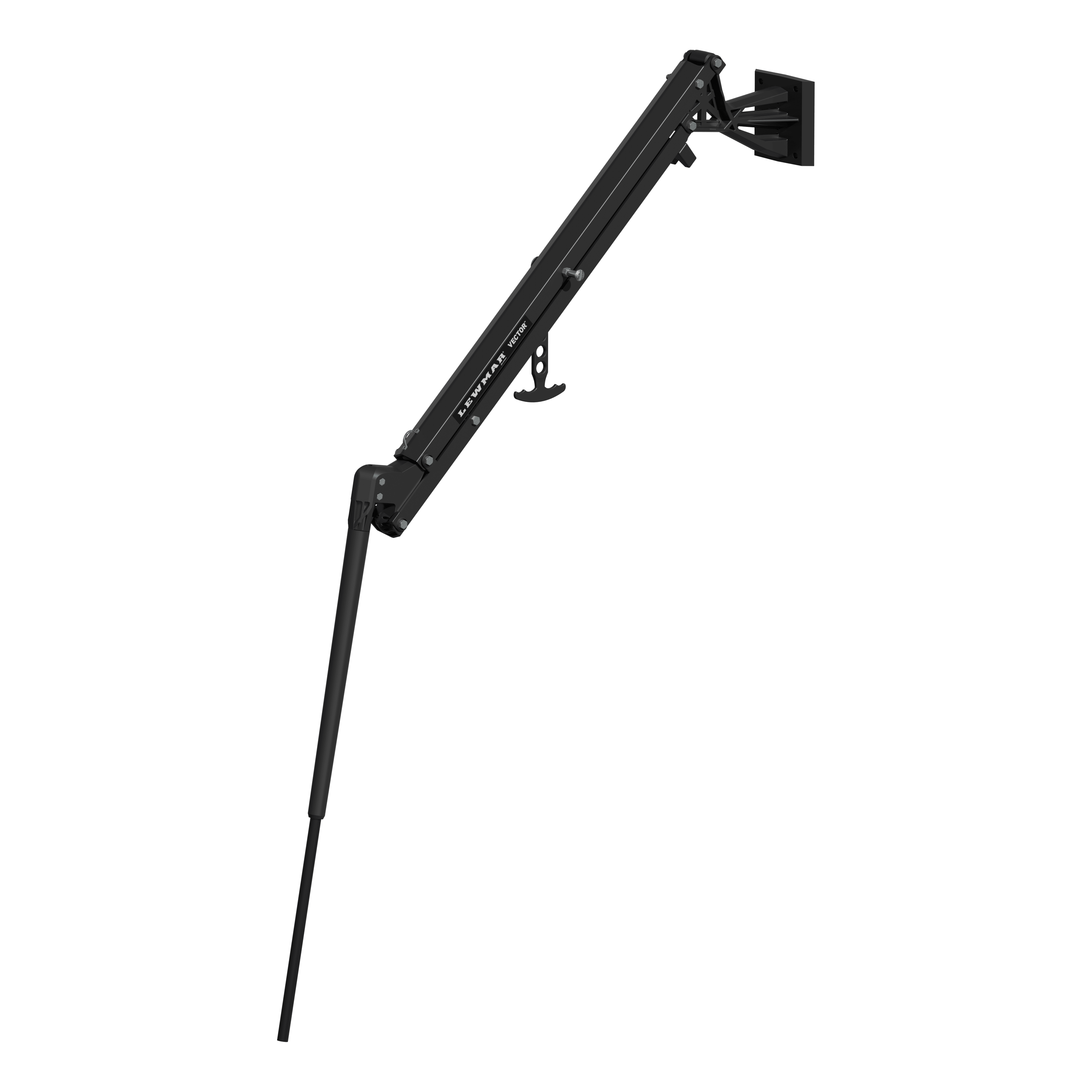

Vector 6' Manual Anchor
SKU #: 2025059420
6-foot manual anchor for low-transom aluminum boats and shallow-draft skiffs — rated for boats up to 22 ft and 3,000 lbs.
$525.00
Manual shallow water anchor with a 6-foot pole and a manual tensioning strap lock — no wiring, no battery, no motor. Built for low-transom aluminum hulls, jon boats, and shallow-draft skiffs. Rated for boats up to 22 ft and 3,000 lbs. Retracted height 54 inches; anchor weight 18 lbs.
Pole Length
FinishWhite
Quantity
Installation
Check Your Mount Before You Check Out
Your boat's transom determines how your shallow water anchor is installed. Some boats can mount directly, while others require a mounting bracket. Use the guide below to make sure you have everything you need before checkout.
- Direct Mount Compatible
Flat Transom
For boats with a flat transom, free from trim tab or outboard motor interference, and interior access, your anchor can mount directly to the boat with the included sturdy mounting plate — no additional mounting bracket required.
- Mounting Bracket Required
Curved or Shaped Transom
If your transom is curved, stepped, or lacks sufficient mounting space, you'll need a mounting bracket for proper installation.
Explore Mounting Brackets - Jack Plate Mount Recommended
Existing Jack Plate
Boats already equipped with a jack plate should use the jack plate mounting bracket for a clean installation that preserves the transom.
Shop Jack Plate Mount - Pontoon Mount Required
Pontoon or Deck Boat
Pontoon and deck boats require the pontoon mounting bracket for proper positioning and performance.
Shop Pontoon Mounts
Upgrade Any Mounting Style
Quick Release Bracket
Add quick, slide-out removal to any Lewmar mounting configuration, including direct transom installations. The Quick Release mounting bracket installs between your anchor and its mounting point, allowing you to remove your anchor in seconds.
- Works with all Lewmar mounting solutions
- Easier winter storage and maintenance
- Easily transfer your anchor between compatible boats
Lock It. Fish It. Move.
Vector 8' — manual anchoring with no electronics required.
Everything You Need. Nothing You Don't.
Vector delivers dependable shallow water anchoring without motors, wiring, or batteries. A gas-assisted deployment system makes it easy to lower the anchor, while the manual retrieval strap provides controlled retraction when it's time to move. With fewer components and no electrical system to maintain, Vector is built for anglers who want reliable performance with minimal upkeep.
Choose Your Vector
Vector 6' Low-profile aluminum hulls and jon boats | This Model Vector 8' Standard transoms — fiberglass and aluminum bass boats | |
|---|---|---|
| Pole Length | 6' | 8' |
| Drive Type | Manual tensioning strap | Manual tensioning strap |
| Max Boat Length | 22 ft | 22 ft |
| Max Boat Weight | 3,000 lbs | 3,000 lbs |
| Deployment Depth | 8 ft | 8 ft |
| Retracted Height | 54" | 54" |
| Anchor Weight | 18 lbs | 18 lbs |
| Electrical Required | None | None |

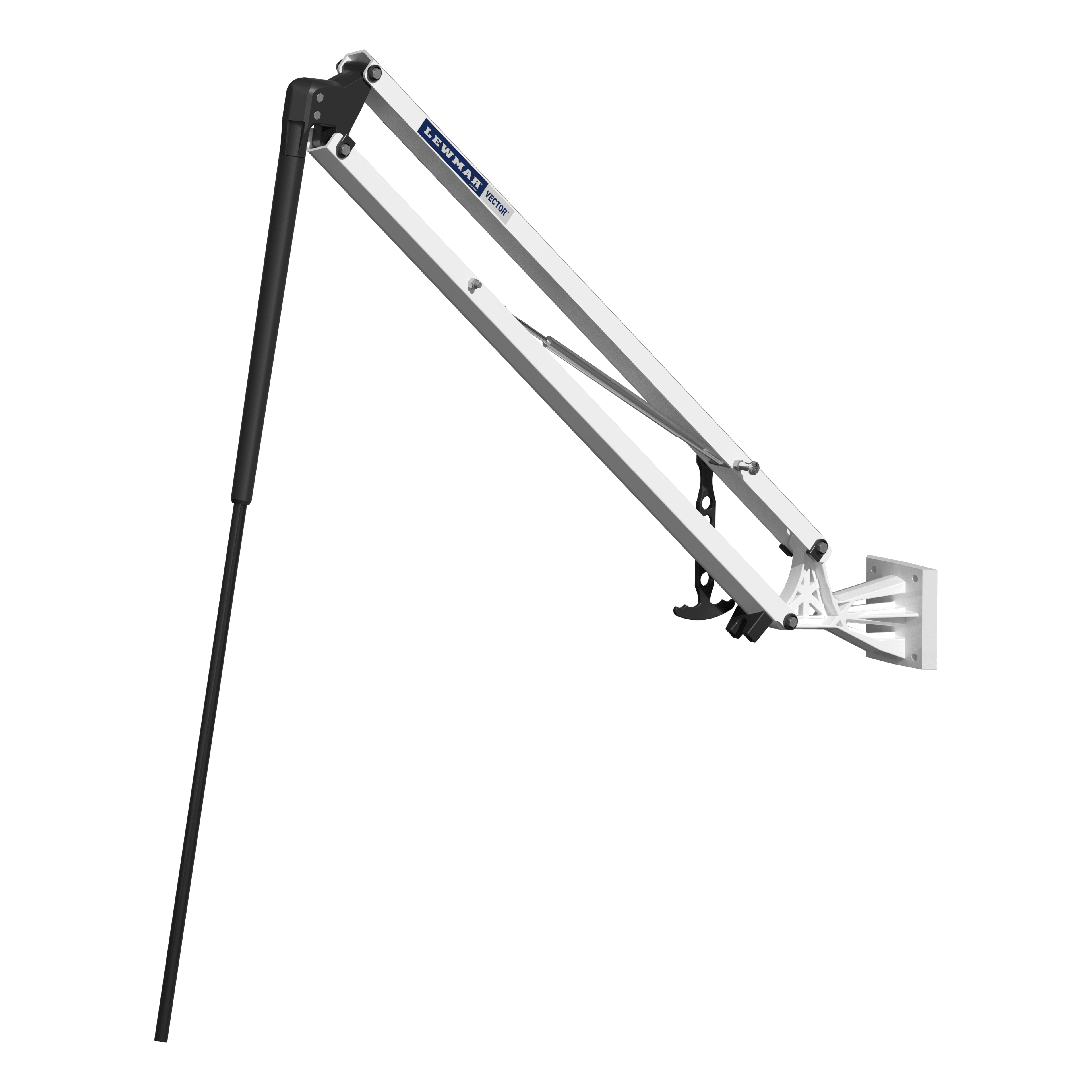

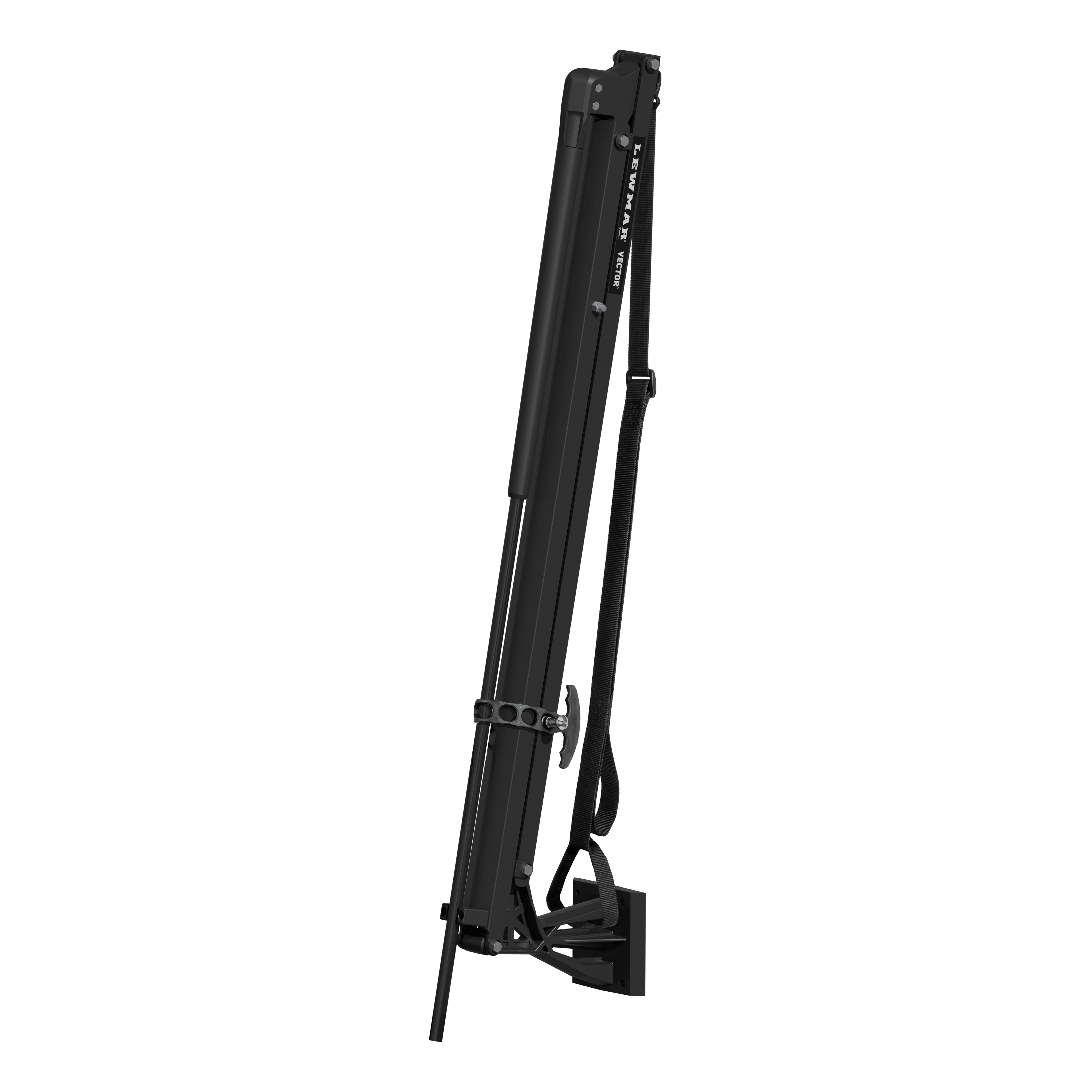

Vector 8'
Standard transoms — fiberglass and aluminum bass boats
- Pole Length
- 8'
- Drive Type
- Manual tensioning strap
- Max Boat Length
- 22 ft
- Max Boat Weight
- 3,000 lbs
- Deployment Depth
- 8 ft
- Retracted Height
- 54"
- Anchor Weight
- 18 lbs
- Electrical Required
- None
Vector 8' — Common Questions
The Vector uses a manual tensioning strap at the base of the pole. Press the pole down to deploy — the anchor foot descends into the bottom. Pull the strap to tension and lock the pole at the deployed position against upward force. To retrieve, release the strap buckle and pull the pole free. The entire cycle takes 3–5 seconds with no tools.
